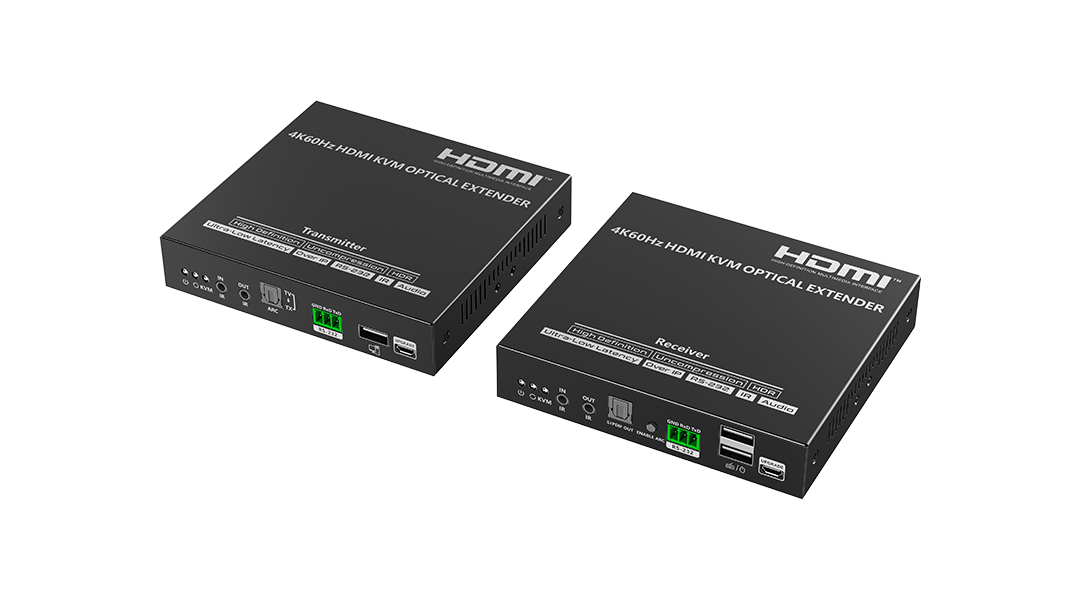

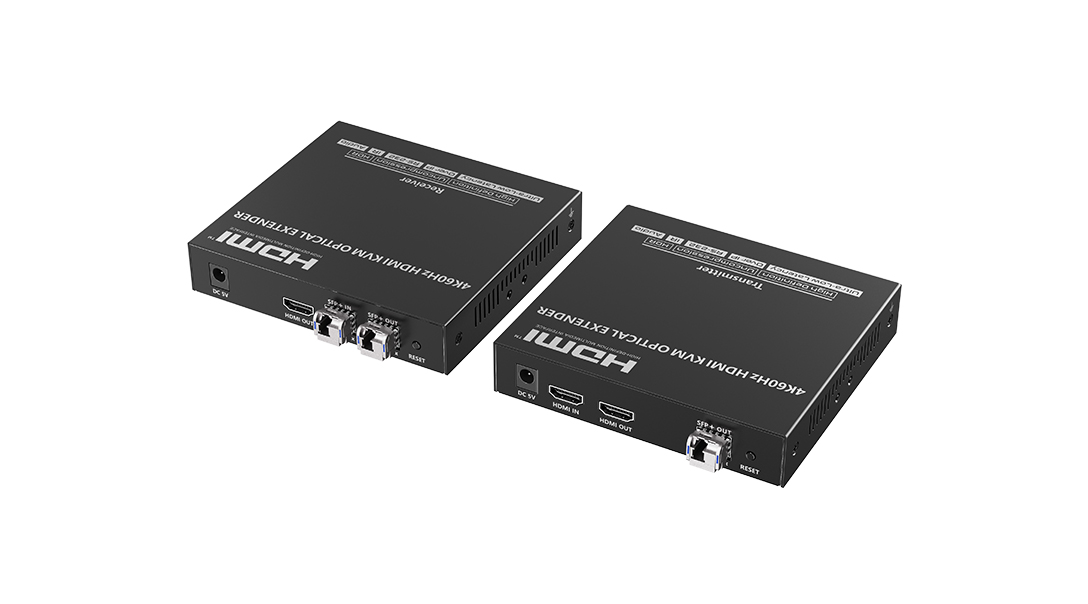

LKV993KVM-V3.0

4K60Hz HDMI KVM Optical EXTENDER

· Features
1. Supports resolution up to 4K@60Hz, backwards compatible.
2. Built on ipcolor PIXEL technology to deliver zero compression AV signals across long distances with ultra-low latency.
3. Supports EDID Pass-back.
4. Compatible with HDMI2.0, also compatible with HDCP1.4/HDCP2.2.
5. Extend 4K@60Hz HDMI signal up to 40 kilometers over LC single-mode fiber optic cable.
6. Supports one-to-one, one-to-many connection and 10G switch cascading.
7. Supports cascading of multiple receivers.
8. Supports bi-directional IR passthrough(20~60KHz).
9. Supports RS-232 passthrough and command control.
10. Supports HDMI ARC and HDMI CEC.
11. Supports KVM function.
12. With audio embedding and extraction, and the Receiver supports S/PDIF audio output.
13. The Transmitter supports HDMI loop out.
14. Firmware upgrading via Micro USB port.
15. Lightning protection, surge protection, ESD protection.
16. Working 24/7.
17. Supports dolby vision

Introduction

Parameters

Downloads

HDMI length

≤5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0 (Deep color, 4K, HDR10, YUV4:4:4, dolby vision)
HDCP1.4/HDCP 2.2

Optical module types

SFP single-mode (default config), SFP multimode

Fiber connector type

Connection types

One-to-one connection
One-to-many connection
Switch cascading

Transmission distance

≤40km (single-mode)

Transmission latency

≤8ms

Resolutions

4096x2160@24/25/30/50Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/50/60Hz, 720p@50/60Hz, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 2560x1080@60Hz, 2560x1440@60Hz, 3440x1440@60Hz

HDMI output

LPCM7.1CH/ DTS - HD/ DTS -Audio/Dolby Digital plus/ Dolby True HD 7.1CH/ Dolby Digital 7.1CH/ Dolby Atmos

Weight

TX: 463g ，RX: 458g

Color

Black

Dimensions

125.00(L)*115.00(W)*25.00(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection
